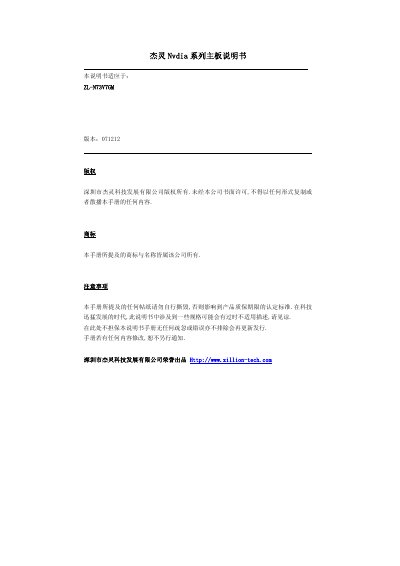

The Jieling ZL-N73V7GM motherboard manual provides installation, driver, BIOS and troubleshooting instructions.
This manual covers the ZL‑N73V7GM motherboard from Jieling, detailing specifications, layout diagrams, and step‑by‑step installation procedures for CPU, memory, storage, and expansion cards. It also includes driver installation guidance for graphics, audio and chipset components.
Additional sections describe BIOS configuration, power‑management settings, and provide technical support contact information for various regions. The document is intended for end‑users and system builders assembling a PC with this motherboard. This manual is written in Chinese.
| Chipset | NVIDIA GeForce 7050, NVIDIA nForce 610i |
|---|---|
| Front Side Bus | 533/800/1066 MHz |
| CPU Support | Core 2 Duo, Pentium 4, Celeron D |
| Memory Support | DDR2 533/667/800, 2 DIMM slots (single channel) |
| Audio Codec | 6‑channel onboard audio |
| LAN | Gigabit Ethernet |
| PCI Express Slots | 1 × PCIe x16, 1 × PCIe x1 |
| SATA Ports | 4 × Serial ATA2 |
| USB Ports | 8 × USB 1.1/2.0 |
| Form Factor | mATX |
Set the CLR_CMOS jumper to pins 1‑2 (default) or move it to pins 2‑3 to clear the CMOS.
Lift the ZIF socket lever, align Pin‑1 with the marked corner, insert the CPU vertically, lower the lever to lock it, then attach the heatsink and fan.
The board has two DDR2 DIMM slots (single‑channel) supporting up to 2 GB total.
Technical support phone numbers and email addresses for Shenzhen, Shanghai, and Beijing offices are listed in the last chapter.
