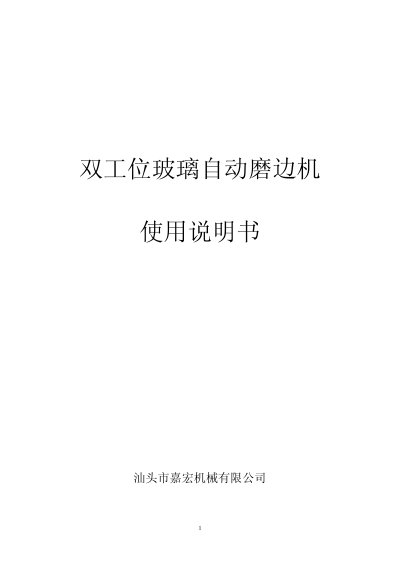

This user manual provides operating instructions, maintenance, safety guidelines, and troubleshooting for the dual‑station automatic glass edge grinding…
The dual‑station automatic glass edge grinding machine is designed to grind the edges of glass sheets up to 360 mm in diameter and 5 mm thick, reducing manual labor and improving consistency. It features a 5000 W motor, 2880 rpm grinding head, and pneumatic and water‑spray systems for efficient processing.
The manual covers equipment parameters, startup preparation, wheel installation, machine adjustment, operation in automatic and manual modes, routine maintenance, safety precautions, and a detailed troubleshooting guide to help operators keep the machine running smoothly. This manual is written in Chinese.
| Overall dimensions (L×W×H) | 2700 mm × 2800 mm × 1800 mm |
|---|---|
| Power supply | 380 V three‑phase |
| Control voltage | DC 24 V |
| Total power | 5000 W |
| Weight | 880 kg |
| Grinding head speed | 2880 rpm |
| Air pressure | 0.4–0.8 MPa |
| Water pressure | 0.4–0.7 MPa |
| Single‑station grinding time | 5–8 seconds per sheet |
| Supported glass thickness | 3 mm–5 mm |
| Maximum glass diameter | 360 mm |
| Grinding wheel inner hole diameter | 30 mm |
| Grinding wheel outer diameter | 120 mm–180 mm |
Before powering on, inspect water, electricity, and gas connections, ensure safety measures, install a grounding electrode, and verify that all electrical connections are correct and intact.
