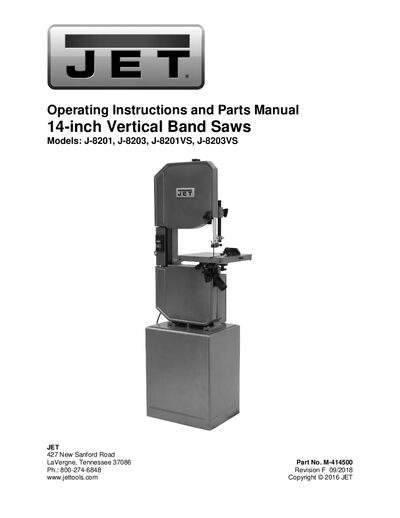

The manual provides safety guidelines, setup, operation, maintenance, troubleshooting, and parts lists for JET 14‑inch vertical band saw models J‑8201…
This document covers warranty information, safety warnings, and general usage rules for JET 14‑inch vertical band saws. It explains the limited warranty periods, safety equipment requirements, and proper handling to prevent injury.
The guide details setup steps, electrical connections, blade adjustments, variable‑speed control, routine maintenance, troubleshooting procedures, and provides exploded‑view diagrams with part numbers for the base, saw head, gearbox, optional riser, and rip fence.
| Motor rating | 1 HP |
|---|---|
| Voltage | 115/230 VAC (single‑phase) or 230/460 VAC (three‑phase) |
| Full load amps | 10 A (single‑phase) / 5 A (single‑phase) or 3.6 A / 1.8 A (three‑phase) |
| Speed | 1725 RPM |
| Blade width capacity | 1/8 to 3/4 in. |
| Throat capacity | 13.5 in. |
| Net weight | 171 lb (J‑8201), 155 lb (J‑8203), 325 lb (VS models) |
Parts are covered for 90 days and consumable items for one year from the date of receipt.
