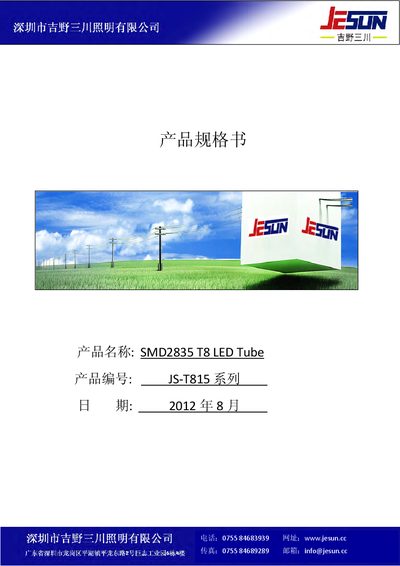

Technical specification sheet for the Jesun JS‑T815 SMD 2835 T8 LED tube, detailing performance, dimensions and installation.
The Jesun JS‑T815 SMD 2835 T8 LED tube is a high‑efficiency, long‑life lighting solution that can replace traditional T8 fluorescent tubes. It offers up to 70% energy savings, a lifespan of 5 000 hours, and high power factor (≥90%).
The datasheet provides detailed electrical parameters, mechanical dimensions, packaging, and recommended installation methods for both magnetic and electronic ballast fixtures. It also lists certifications (CE, RoHS, IEC) and environmental specifications. This manual is written in Chinese.
| Working Voltage | AC160V‑AC260V 50/60Hz |
|---|---|
| Power Options | 10 W / 18 W / 22 W |
| Length | 0.6 m / 1.2 m / 1.5 m |
| Luminous Flux (transparent mask) | ≥2500 lm |
| Color Temperature (warm white) | 3000‑3500 K |
| Color Rendering Index | ≥75 |
| Power Factor | ≥90% |
| IP Rating | IP33 |
| Lifespan | ≥5000 hours |
| Operating Temperature | -20 °C ~ 55 °C |
Turn off power, remove the starter, insert the LED tube into the ballast holder, and optionally remove or short‑circuit the magnetic ballast for better energy savings.
Yes, turn off power, remove or short‑circuit the electronic ballast, then insert the LED tube into the holder.
It can replace traditional T8 fluorescent tubes in factories, offices, malls, hospitals, hotels, restaurants, supermarkets, subways, waiting halls, schools, libraries, as well as interior lighting for vehicles, ships and aircraft.
