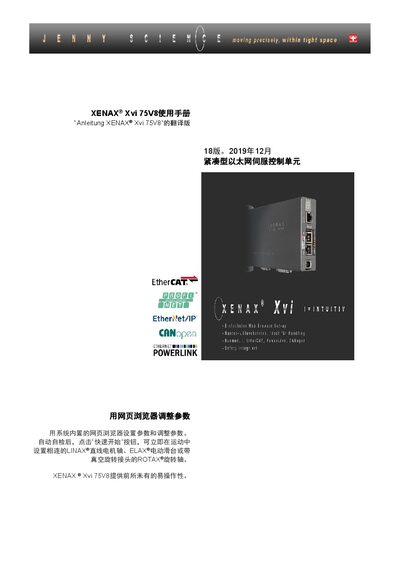

The Jenny Science Xvi 75V8 User Manual provides setup, configuration, safety, and operation instructions for the compact Ethernet servo controller.
The Xvi 75V8 is a compact Ethernet‑based servo control unit that can drive LINAX® linear axes, ELAX® electric slides, ROTAX® rotary axes and a range of servo motors. It offers built‑in web‑based parameter adjustment, safety functions (STO, SS1, SS2, SLS) and supports multiple fieldbuses such as EtherCAT, POWERLINK, CANopen, PROFINET and Ethernet/IP.
This manual covers the device’s features, hardware installation, electrical connections, safety certification, networking setup, ASCII command set, WebMotion® software usage, programming, force‑control processes and detailed error handling procedures. This manual is written in Chinese.
| Logic power supply | 24 V DC |
|---|---|
| Motor power supply | 12‑75 V DC |
| Nominal current | 0‑8 A |
| Continuous power | 150 W |
| Temperature shutdown | 80 °C |
| Safety integrity level | SIL 2 |
Use the IPCONFIG command to check the IP address and the PING command to verify connectivity.
The unit has 12 digital inputs with a 24 V pull‑down configuration.
Firmware can be updated via TCP/IP; the new image is written to the internal flash memory.
STO (Safety Torque Stop) disables the power stage when activated, providing a safe torque‑off condition.
