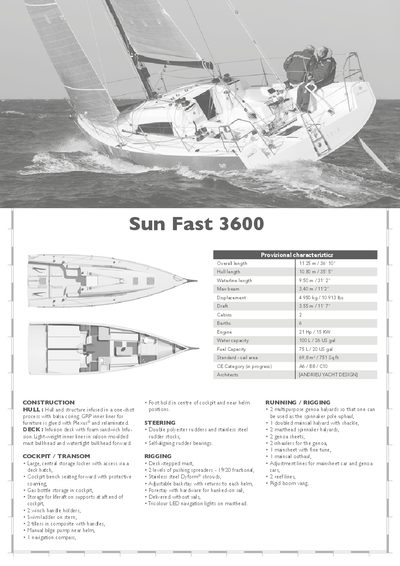

The Jeanneau Sun Fast 3600 specifications detail dimensions, construction, layout, engine, rigging, and optional equipment.
The Sun Fast 3600 is a 11.25 m (36 ft 10 in) sailboat with a hull length of 10.80 m, a waterline of 9.50 m, and a maximum beam of 3.40 m. It displaces 4,950 kg and draws 3.55 m, offering two cabins and six berths. The boat features a deck‑stepped mast with fractional rigging, a 21 HP Yanmar diesel engine, and a standard sail area of 69.8 m².
Construction uses a balsa‑cored hull with GRP inner liners, and the deck is a foam‑sandwich infusion. Standard equipment includes a cockpit storage locker, twin tillers, stainless‑steel rudders, and a range of deck hardware. Optional items cover a carbon‑fibre mast, twin‑wheel steering, and an electronics package with GPS and autopilot.
| Overall length | 11.25 m / 36 ft 10 in |
|---|---|
| Hull length | 10.80 m / 35 ft 5 in |
| Waterline length | 9.50 m / 31 ft 2 in |
| Max beam | 3.40 m / 11 ft 2 in |
| Displacement | 4,950 kg / 10,913 lb |
| Draft | 3.55 m / 11 ft 7 in |
| Cabins | 2 |
| Berths | 6 |
| Engine power | 21 HP / 15 kW |
| Water capacity | 100 L / 26 US gal |
| Fuel capacity | 75 L / 20 US gal |
| Standard sail area | 69.8 m² / 751 sq ft |
| CE Category | A6 / B8 / C10 |
The boat is equipped with a diesel engine Yanmar 3YM20C delivering 21 HP.
The layout includes six berths.
It has a water capacity of 100 L (26 US gal).
The rig features a deck‑stepped mast with two levels of pushing spreaders and a 19/20 fractional arrangement.
