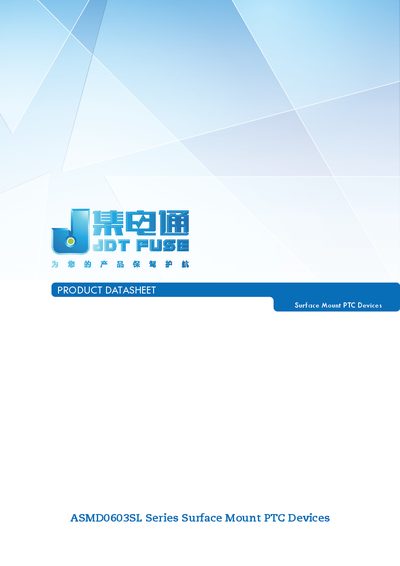

The JDT ASMD0603SL Series datasheet provides specifications, electrical characteristics, and application information for surface‑mount PTC resettable fuses.
The ASMD0603SL series from JDT offers miniature surface‑mount resettable over‑current protection devices with holding currents from 0.35 A to 2.0 A. Designed for ultra‑portable applications, the devices are RoHS‑compliant, halogen‑free, and feature fast tripping in a 0603 package.
Key specifications include a maximum operating voltage of 6 V, an operating temperature range of –40 °C to 85 °C, and a typical device dimension of 1.0 mm × 0.8 mm × 1.0 mm. The datasheet also details electrical characteristics, environmental test results, recommended soldering profiles, and tape‑and‑reel packaging options.
| Holding Current (I hold) | 0.35 A ~ 2.0 A @25 °C |
|---|---|
| Maximum Voltage | 6 V |
| Operating Temperature Range | -40 °C ~ 85 °C |
| Maximum Power Dissipation (Pd) | 0.5 W (typical) |
The holding current ranges from 0.35 A to 2.0 A at 25 °C.
The devices are rated for a maximum voltage of 6 V.
Recommended methods are IR, vapor‑phase oven, hot‑air oven, or N₂ environment; wave soldering is not advised.
