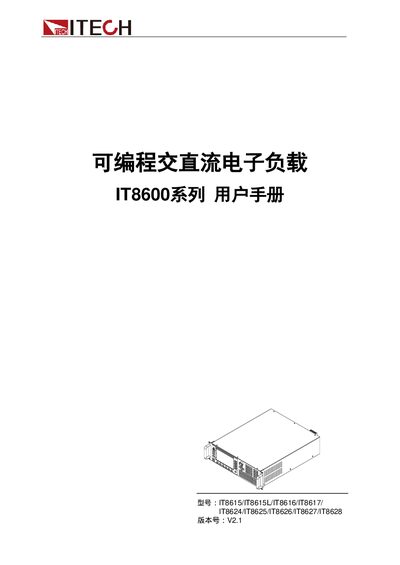

User manual for Itech IT8600 series programmable AC/DC electronic loads, covering safety, operation, specifications and maintenance.
The Itech IT8600 series includes models such as IT8615, IT8615L, IT8616, IT8617, IT8624‑IT8628. This manual provides detailed safety notices, installation steps, and operating instructions for the programmable AC/DC electronic load.
Key sections cover safety symbols, environmental limits, basic operation modes (CC, CR, CV, CP), protection functions, measurement features, communication interfaces (USB, GPIB, LAN) and technical specifications. Appendices list optional test leads and warranty information. This manual is written in Chinese.
| Input voltage range | 100‑240 V AC, 47‑63 Hz |
|---|---|
| Maximum current (110 V) | <16 A |
| Maximum current (220 V) | <8 A |
| Maximum power | 12.6 kW (OPP) |
| Over‑current protection (OCP) | 150 A rms |
| Over‑voltage protection (OVP) | 430 V rms |
The load includes over‑voltage (OVP), over‑current (OCP), over‑power (OPP), over‑temperature (OTP), under‑voltage, frequency‑out‑of‑range and load‑fail protection.
The series comprises IT8615, IT8615L, IT8616, IT8617, IT8624, IT8625, IT8626, IT8627 and IT8628.
