IRDA-WELDER T862++ Infrared Rework Station User Manual

User manual for the IRDA-WELDER T862++ infrared rework station, covering features, specifications, assembly, and operating instructions.

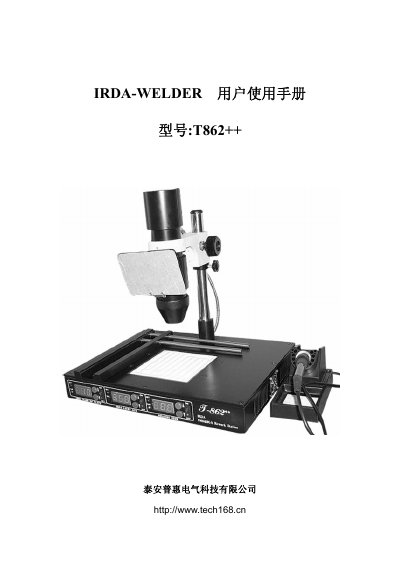

IRDA-WELDER T862++ Infrared Rework Station User Manual - cover page
Brand
泰安普惠电气
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
9
File format
PDF
File size
5.1 MB
Updated
16 October, 2026
MD5 checksum
B048A7FE7C6D0D5C19D0EBF59E10B1DA
PDF
IRDA-WELDER T862++ Infrared Rework Station User Manual PDF

About this manual

This manual provides instructions for the IRDA-WELDER T862++ infrared rework station, a device designed for removing and re-soldering electronic components. It highlights features such as independent infrared heating and a built-in 936 soldering iron, allowing for precise work on various component sizes without damaging surrounding parts. This manual is written in Chinese.

What's inside

  • Product Features
  • Main Parameters
  • Main Components
  • Component Functions
  • Assembly Steps
  • Operating Instructions
  • Precautions

Specifications

Power VoltageAC220v 50Hz
Power800W
Infrared Lamp Temperature Range100℃-350 ℃
Baseplate Preheat Temperature Range60℃-200 ℃
Preheat Range120x120mm
Minimum Spot Diameter15mm
Maximum Focusable Spot Diameter50mm

Frequently asked questions

What is the power rating of the IRDA-WELDER T862++?

The power rating is 800W.

What is the temperature range for the infrared lamp?

The infrared lamp temperature range is 100℃ to 350℃.

What is the preheat range of the baseplate?

The baseplate preheat temperature range is 60℃ to 200℃.

What is the minimum spot diameter of the lamp?

The minimum spot diameter of the lamp is 15mm.
