IQtronic IQSW-GSM Intelligent Power Socket User Guide

This user guide covers the installation, management, and technical specifications of the IQtronic IQSW-GSM intelligent power socket for remote appliance…

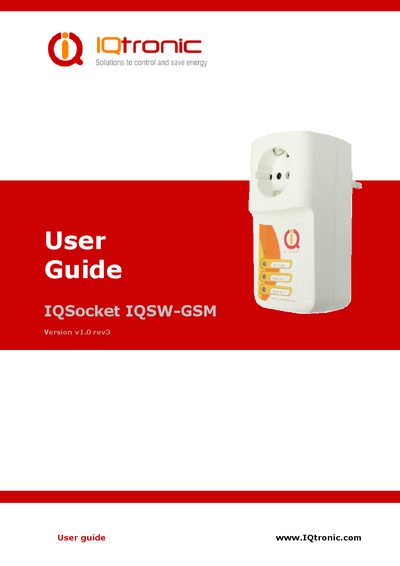

IQtronic IQSW-GSM Intelligent Power Socket User Guide - cover page
Brand
iQtronic
Category
Other Electronics
Document type
User Manual
Language
English
Pages
34
File format
PDF
File size
752 KB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BE8F6C53373A891A06D0BB96D7952012
PDF
IQtronic IQSW-GSM Intelligent Power Socket User Guide PDF

About this manual

The IQtronic IQSW-GSM is an intelligent power socket designed to allow remote control of electric appliances via a GSM network using SMS messages or phone calls. The device features a built-in real-time clock, temperature monitoring, and a scheduler function for automatic on/off operations. It also includes an auxiliary microrelay output and inputs for external sensors like PIR or door contacts.

What's inside

  • Product features
  • Inserting SIM Card
  • Wiring the IQsocket
  • Managing by SMS
  • Managing by phone call
  • Timing setup
  • Temperature alarm
  • Factory default settings
  • Technical specification
  • Indicators

Specifications

Maximum rating for switched socket16A
Auxiliary microrelay output rating30VDC/0.5A max
Input power supply for external sensors+5V/50mA
Internal storage for power eventslast five power lost events

Frequently asked questions

Can I use the device with a SIM card that has PIN authorization?

No, PIN authorization must be turned off before inserting the SIM card into the IQsocket IQSW-GSM.

What is the maximum current for the auxiliary output?

The maximum rating for the auxiliary microrelay output is 30VDC/0.5A.
