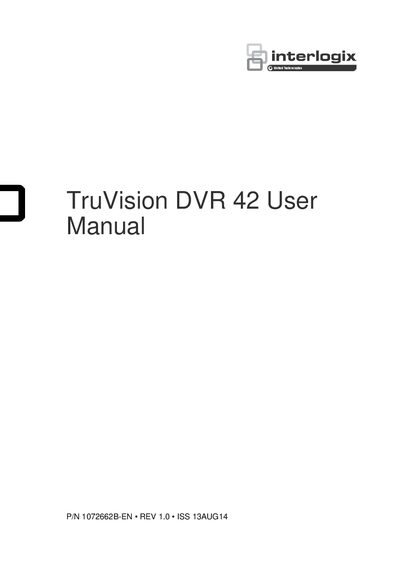

The Interlogix TruVision DVR 42 User Manual provides installation, setup, operation, and maintenance instructions for the digital video recorder.
This manual covers the full lifecycle of the TruVision DVR 42, from unpacking and installation to daily operation and advanced features. It includes detailed chapters on hardware connections, network configuration, camera setup, recording options, alarm management, and system maintenance.
The document also provides specifications, default settings, troubleshooting tips, and appendices with protocol details, port information, and firmware support, helping both end‑users and technicians to configure and maintain the device effectively.
| Video compression | H.264 |
|---|---|
| Audio compression | OggVorbis |
| HDMI output resolution | 1920×1080P/60 Hz, 1920×1080P/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA output resolution | 1920×1080P/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| Encoding resolution | 4CIF / 2CIF / CIF / QCIF / 960h |
| Frame rate | 25 fps (PAL) / 30 fps (NTSC) |
| Video bit rate | 32 kbps to 4096 kbps (user defined max 4096 kbps) |
| Audio bit rate | 16 kbps |
The default IP address is 192.168.1.82.
It can record 4, 8, or 16 analog cameras depending on the model configuration.
Leave 44 mm (1.75 in.) of space between rack‑mounted TruVision DVR 42 units.
