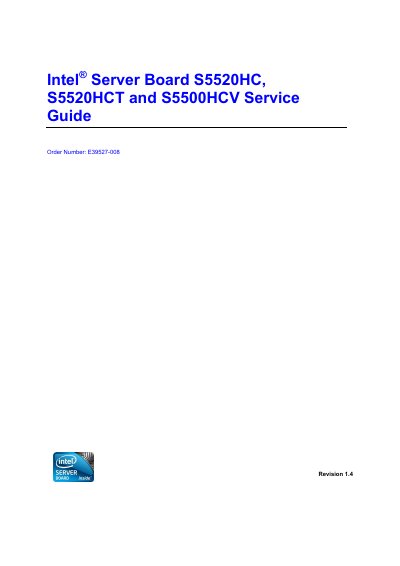

Intel Server Board S5520HC, S5520HCT, S5500HCV Service Guide

About this manual

This Service Guide is written for system technicians who need to service Intel Server Boards S5520HC, S5520HCT, and S5500HCV. It covers safety precautions, required tools, and detailed diagrams to identify board components and connectors.

The manual is organized into sections on board features, configuration jumpers, back‑panel functions, Intel Light‑Guided Diagnostics, RAID support, hardware requirements, BIOS utilities, hardware installation and upgrade procedures, and comprehensive troubleshooting guidance.

What's inside

• Server Board Features
• Connector and Component Locations
• Configuration Jumpers
• Back Panel Features
• Intel Light‑Guided Diagnostics
• RAID Support
• System Utilities
• Hardware Installations and Upgrades
• Troubleshooting

Frequently asked questions

How should power be removed before working on the server board?

Unplug the AC power cord from the wall outlet before opening the chassis or adding/removing components.
