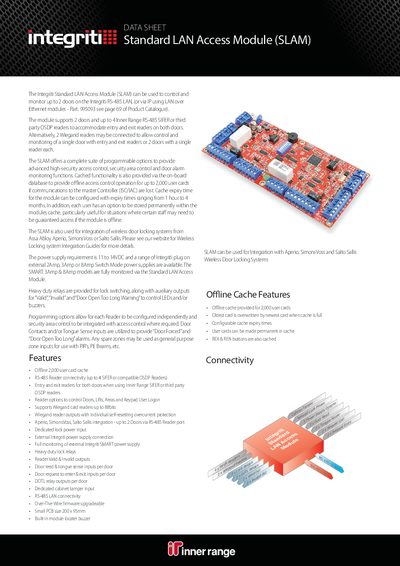

The Integriti SLAM Data Sheet details specifications, connectivity, power requirements, and ordering options for the Standard LAN Access Module.
The Integriti Standard LAN Access Module (SLAM) provides control and monitoring for up to two doors on an RS‑485 LAN or via Ethernet. It supports up to four Inner Range SIFER or compatible OSDP readers, or two Wiegand readers, and includes offline caching for up to 2,000 user cards with configurable expiry times.
The data sheet lists physical enclosure dimensions, power supply requirements (11‑14 VDC), electrical ratings, and ordering options for various enclosure sizes and power supply models. Connectivity features, offline cache capabilities, and hardware specifications such as lock relay ratings and PCB size are also provided.
| Power supply input voltage | 11 V to 14 VDC |
|---|---|
| Current consumption (standby) | 110 mA |
| Current consumption (with lock relays on) | 175 mA |
| Lock relay rating | 5 A @ 30 VDC |
| DOTL relay rating | 1 A @ 30 VDC |
| PCB size | 200 mm × 94 mm × 45 mm |
| Weight (medium enclosure) | 8.2 kg |
| Offline cache capacity | 2,000 user cards |
| Cache expiry time range | 1 hour to 4 months |
| Maximum doors supported | 2 doors |
| Maximum RS‑485 readers supported | 4 SIFER or compatible OSDP readers |
| Wiegand reader support | up to 88‑bit cards |
The SLAM can cache up to 2,000 user cards for offline operation.
The module requires a power supply of 11 V to 14 VDC.
It can control and monitor up to two doors.
The lock relays are rated for 5 A at 30 VDC.
