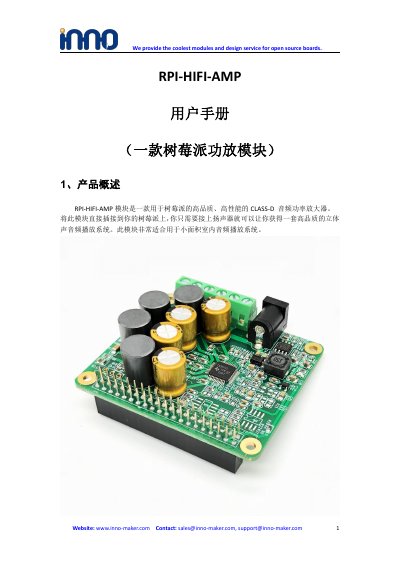

The manual explains the Inno-Maker RPI-HIFI-AMP module for Raspberry Pi, its features, hardware and software installation, and configuration steps.
The RPI-HIFI-AMP is a Class‑D audio power amplifier module designed to plug directly into a Raspberry Pi, providing high‑quality stereo sound for small indoor spaces. It delivers up to 25 W per channel and works with 4 Ω or higher impedance speakers.
The guide covers the module’s key features, hardware connection to the Pi’s 40‑pin header, required 12‑20 V external power, compatible software platforms (OSMC, Max2Play, Volumio, etc.), and step‑by‑step instructions for preparing a TF card, flashing the image, and configuring the system. This manual is written in Chinese.
| Maximum Output Power | 25 W per channel (stereo) |
|---|---|
| Supported Speaker Impedance | 4 Ω or higher |
| Efficiency | up to 90 % |
| Supported Sample Rates | 44.1 kHz and 48 kHz |
| Power Supply Voltage | 12‑20 V external |
| Form Factor | RPI‑HAT compatible |
It can deliver up to 25 W per channel in stereo.
It supports speakers with 4 Ω or higher impedance.
The module needs a 12‑20 V external power source.
Audio files at 44.1 kHz or 48 kHz are supported.
