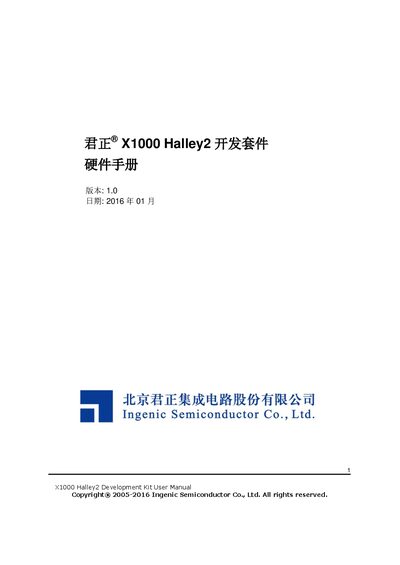

The Ingenic X1000 Halley2 Development Kit User Manual provides hardware overview, board details, and quick start instructions.
This manual describes the X1000 Halley2 IoT development kit from Ingenic, covering its multi‑board architecture including the core board, trans board, base board, and LCD/Camera expansion boards. It details the hardware structure, main components, and functional circuits such as power, Wi‑Fi/BT, SPI‑Flash, and peripheral interfaces.
The guide also includes a quick‑start section with hardware connection instructions, power options, normal boot procedure, methods to enter firmware‑burning mode, and jumper settings for power and audio outputs. This manual is written in Chinese.
| CPU | Ingenic X1000, 32 MB LPDDR, up to 1 GHz |
|---|---|
| Flash Memory | 16 MB SPI NOR Flash (expandable) |
| Ethernet | 10/100 Mbps RMII controller built‑in |
| EEPROM | 16 Kbit EEPROM for user extensions |
It supports Wi‑Fi 2.4 GHz IEEE 802.11 b/g/n and Bluetooth 4.1 as well as Bluetooth Low Energy.
