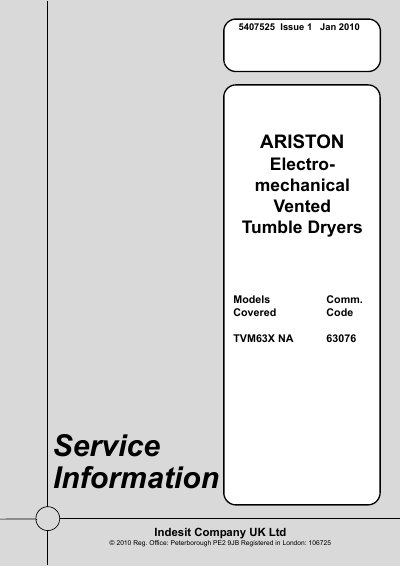

A service manual for the Indesit TVM63X NA electro-mechanical vented tumble dryer, covering safety notes, technical specifications, machine function, and…
This document serves as a service information guide for the Indesit TVM63X NA electro-mechanical vented tumble dryer. It provides essential safety advice, explains serial number decoding, and lists detailed technical specifications including electrical ratings, dimensions, and component features such as the reversing motor and dual heat options.
The manual details the machine's operational logic, specifically the automatic drying system sequence involving high-heat pre-heating and thermostat-controlled cycles. It describes the console controls, available programmes like 'Easy Iron' and 'Timed Drying', and provides comprehensive dismantling instructions for servicing.
| Electrical Rating | 115 Volts AC 60Hz |
|---|---|
| Power Consumption | 1.45 kW |
| Plug Type | USA NEMA 5.15 |
| Cable Length | 1.8 Metres |
| Dimensions (Height) | 850 mm |
| Dimensions (Width) | 595 mm |
| Dimensions (Depth) | 562 mm |
| Weight (packed) | 35 kg |
| Drum Capacity | 100 Litres / 6Kg |
| Motor Type | 353 - Capacitor run, single phase, 2 pole, induction type |
| Capacitor Value | 25 uF |
The maximum dry weight for a full drying cycle is 6 Kg.
It is a short 10 minute program consisting of 8 minutes of heat followed by a 2 minute Air Fluff period.
A second 'one shot' cut-out breaks the element Neutral connection to prevent unsafe air temperatures.
Timer 2 reverses the motor direction approximately every 2.5 minutes.
