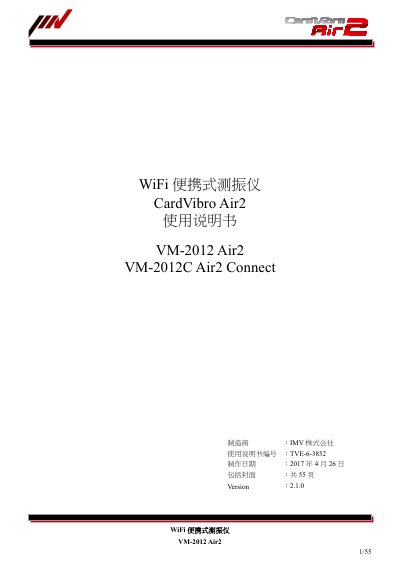

This manual covers the operation, installation, and specifications of the IMV VM-2012 Air2 WiFi portable vibration meter and its optional connector model.
The document is a user manual for the IMV VM-2012 Air2 WiFi Portable Vibration Meter. It details the product components, including the main unit, USB charger adapter, probe, Ni-MH batteries, and various optional accessories like external sensors and cases.
The guide provides step-by-step instructions on how to install the sensor, connect the device to an Android tablet via WiFi or USB, and perform measurements. It covers specific measurement modes such as OA (Overall Average), FFT/WV analysis, Top5 values, and path functions, along with data archiving features. This manual is written in Chinese.
| Interface (Wireless) | IEEE802.11b/g, WEP, WPA/WPA2 |
|---|---|
| Interface (Wired) | USB 2.0 |
| Memory Capacity | 4Mbit x 16bank |
| Power Source | 2x AAA Ni-MH batteries |
| Sampling Frequency (A, E3) | 76.8 kHz |
| AD Resolution | 16bit |
| Operating Temperature | +5°C to +50°C |
| Weight (Standard Model) | Approx. 145g |
The device uses two AAA rechargeable Ni-MH (secondary) batteries. Primary (single-use) batteries should not be used.
The device supports connection via WiFi or USB cable. For USB, you must loosen two handle screws and slide the cover counter-clockwise.
The maximum acceleration measurement range is 500m/s².
