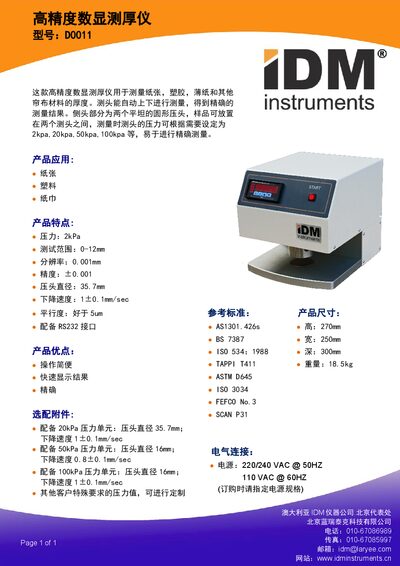

High‑precision digital thickness gauge D0011 for paper, plastic and fabric measurement with selectable pressure units and RS‑232 interface.
The IDM Instruments D0011 is a high‑precision digital thickness gauge designed for measuring paper, plastic, tissue and other sheet materials. It features two flat circular pressure heads that can be set to 2 kPa, 20 kPa, 50 kPa or 100 kPa for accurate measurements.
The instrument offers a 0‑12 mm measurement range, 0.001 mm resolution, ±0.001 mm accuracy, and optional pressure units. It includes an RS‑232 communication port, selectable power options (220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz), and dimensions of 270 mm × 250 mm × 300 mm, weighing 18.5 kg. This manual is written in Chinese.
| Pressure (selectable) | 2 kPa, 20 kPa, 50 kPa, 100 kPa |
|---|---|
| Measurement Range | 0‑12 mm |
| Resolution | 0.001 mm |
| Accuracy | ±0.001 mm |
| Head Diameter | 35.7 mm (2 kPa unit) / 16 mm (50 kPa & 100 kPa units) |
| Descent Speed | 1 ± 0.1 mm/s (2 kPa) / 0.8 ± 0.1 mm/s (50 kPa) / 1 ± 0.1 mm/s (100 kPa) |
| Parallelism | Better than 5 µm |
| Dimensions (H × W × D) | 270 mm × 250 mm × 300 mm |
| Weight | 18.5 kg |
| Interface | RS‑232 |
| Power Supply | 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz |
The gauge measures thickness from 0 to 12 mm.
It offers a resolution of 0.001 mm.
Yes, the pressure can be set to 2 kPa, 20 kPa, 50 kPa or 100 kPa.
The instrument includes an RS‑232 interface.
