iDirect Evolution Satellite Router Installation and Commissioning Guide

This guide provides instructions for installing and commissioning iDirect Evolution satellite routers, covering site selection, software loading, and…

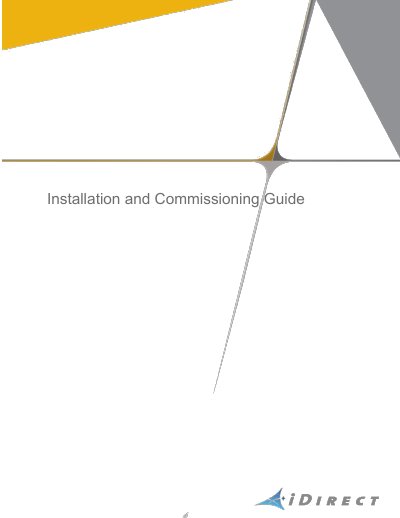

iDirect Evolution Satellite Router Installation and Commissioning Guide - cover page
Brand
iDirect
Category
Industrial Robot
Document type
User Manual
Language
English
Pages
124
File format
PDF
File size
4.4 MB
Published
17 October, 2026
Updated
17 October, 2026
MD5 checksum
BD85694B1E1725C11931B5A0B35AE00E
PDF
iDirect Evolution Satellite Router Installation and Commissioning Guide PDF

About this manual

This document serves as a comprehensive guide for the installation and commissioning of iDirect Evolution satellite routers at remote sites. It is intended for satellite earth station engineers, network operators, and field technicians. The guide supports a specific range of models including the Evolution X1, X3, X5, X7, e150, and e8350, as well as the iConnex e800 and e850.

What's inside

  • Getting Started
  • Site Considerations
  • Connecting to the LAN Port
  • Loading Packages with iSite
  • Configuring TRANS EC ACC Keys
  • Pointing the Antenna with iSite
  • Connecting with Web iSite
  • Over the Air Download
  • Setting Geographic Location
  • Acquiring the Network

Specifications

Supported ModelsEvolution X1, X3, X5, X7, e150, e8350, iConnex e800, e850
Intended Audiencesatellite earth station engineers, network operators, and field technicians

Frequently asked questions

Which iDirect models are supported by this guide?

The guide supports Evolution X1, X3, X5, X7, e150, and e8350, as well as iConnex e800 and e850.

Is iNFINITI Satellite Router supported in this guide?

No, iNFINITI Satellite Routers are not supported in iDX Release 3.2 and later.

What tools are required for coarse antenna alignment?

Required items include a compass or GPS receiver, site magnetic variation data, an inclinometer, an indelible marker, and hand tools.
