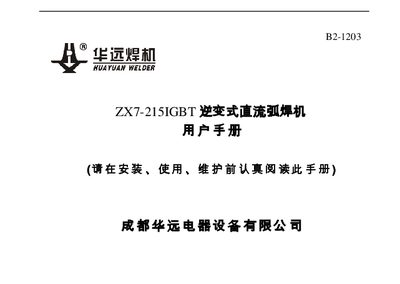

The Hwayuan B2-1203 ZX7-215 inverter DC arc welding machine user manual provides safety guidelines, specifications, installation, operation, and maintenance…
This manual introduces the Hwayuan B2-1203 ZX7-215 inverter DC arc welding machine, covering its design, applications, and key features. It is intended to help users safely install, operate, and maintain the equipment.
The document is organized into sections on safety precautions, product overview, main technical parameters, working principle, installation and operation steps, maintenance and repair procedures, and a packing list. It also explains the meaning of indicator lights and provides wiring information. This manual is written in Chinese.
| Model | ZX7-215IGBT |
|---|---|
| Rated Input Voltage | Single‑phase 220 V AC 50/60 Hz |
| Rated Input Capacity | 6 kVA |
| Protection Rating | IP21S |
| Rated Load Duty Cycle | 35 % |
The machine is rated for single‑phase 220 V AC at 50/60 Hz.
The welding machine has a protection rating of IP21S and is not suitable for use in rain.
