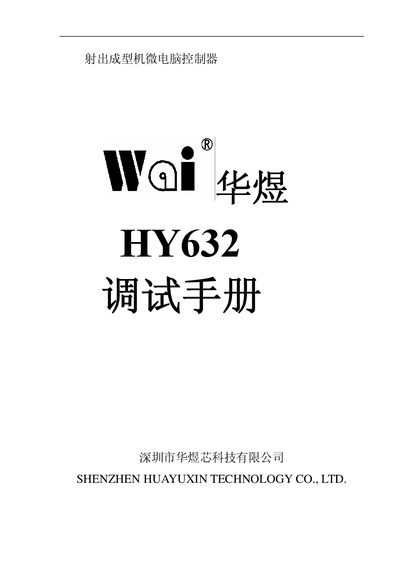

The Huayu HY632 injection molding machine controller debugging manual provides quick start, panel operation, parameter entry, troubleshooting, and…
This manual guides users through the HY632 controller for injection molding machines. It starts with a quick‑start section that introduces the 5.7‑inch color LCD screen, input/output points, and basic operation steps.
Subsequent chapters detail the layout of the operation panel, key functions, parameter input methods, page navigation, fault alerts, and mechanical installation dimensions. An appendix supplies additional hardware dimensions and contact information for support. This manual is written in Chinese.
| LCD screen size | 5.7 inch color |
|---|---|
| Number of input points | 32 |
| Number of output points | 37 |
| Temperature input channels | 8 |
| Electric heating output channels | 7 (expandable to 8) |
| Electronic ruler control groups | 6 |
| Mold data memory capacity | 50 groups |
| Motor start control | Hardware star‑delta start |
Section 6 of the manual provides the installation dimensions of the operation panel.
