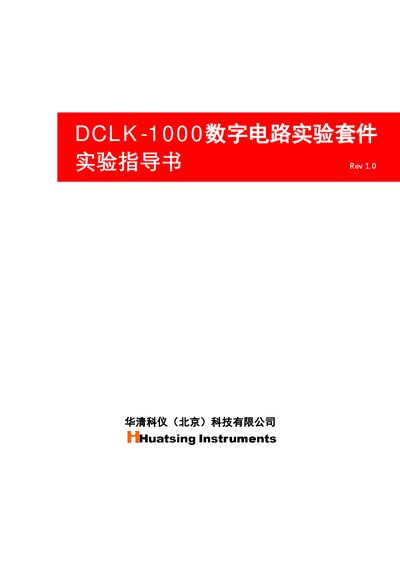

The DCLK-1000 digital circuit experiment kit guide provides step‑by‑step instructions, component lists and safety notes for all seven laboratory experiments.
This guide introduces the DCLK-1000 kit, its components, and the HA‑MB02 breadboard. It includes a detailed parts inventory, tool list, and safety precautions for handling chips and wiring.
The manual is organized into seven experiments covering basic circuit use, decoder design, BCD seven‑segment display, priority encoder, D‑flip‑flop, JK‑flip‑flop, and counter applications, followed by appendices with answer keys, chip characteristics, and a schematic diagram. This manual is written in Chinese.
| Resistor values | 1 kΩ, 3 kΩ, 10 kΩ, 20 kΩ, 910 kΩ |
|---|---|
| Capacitor values | 6.8 nF, 10 nF, 33 nF, 1 µF |
| Chip library size | 21 types, 26 chips |
| Multimeter model | UT120C, 3 1/4‑digit |
| Breadboard model | HA‑MB02 |
The kit contains 21 different chip types, totaling 26 individual chips.
It is powered by an external +5 V supply from the USB port (J1) on the board, with an LED indicator and a self‑reset fuse.
The CD4511 decoder chip provides the BCD‑to‑seven‑segment conversion.
