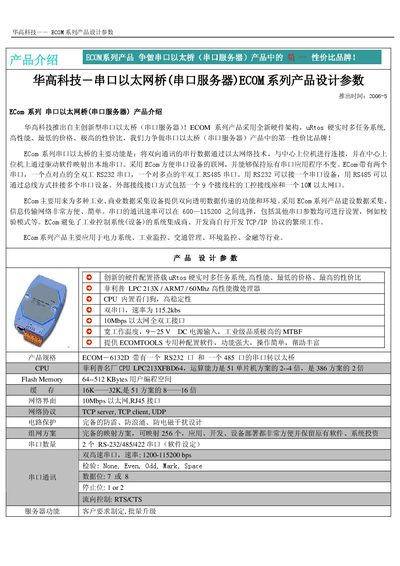

The Huagao Technology ECOM-6132D serial-to-ethernet bridge design parameters detail its dual RS232/RS485 ports, 10 Mbps Ethernet, and operating specifications.
The ECOM-6132D is a serial‑to‑ethernet bridge from Huagao Technology that provides two configurable serial ports (RS‑232/RS‑485/RS‑422) and a 10 Mbps full‑duplex Ethernet interface for industrial data acquisition and monitoring.
Key specifications include a Philips LPC213 CPU, flash memory of 64‑512 KB, programmable memory of 16‑32 KB, baud rates from 1200 to 115200 bps, power supply 9‑25 V DC, operating temperature 0 °C‑60 °C (storage –40 °C‑70 °C), and compact dimensions of 110 mm × 75 mm × 25 mm. The device supports TCP server/client and UDP protocols, LED status indicators, and password‑protected remote configuration. This manual is written in Chinese.
| CPU | Philips LPC213 XFBD64 |
|---|---|
| Flash Memory | 64–512 KB |
| User Programming Space | 16 KB–32 KB |
| Ethernet Interface | 10 Mbps Ethernet, RJ45 |
| Serial Ports | 2 ports (RS‑232/RS‑485/RS‑422 configurable) |
| Baud Rate | 1200–115200 bps |
| Data Bits | 7 or 8 |
| Stop Bits | 1 or 2 |
| Parity | None, Even, Odd, Mark, Space |
| Power Input | 9–25 V DC |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 70 °C |
| Dimensions (D×W×H) | 110 mm × 75 mm × 25 mm |
| Network Protocols | TCP server, TCP client, UDP |
| Mapping Capacity | 256 ports |
The device provides two serial ports that can be set as RS‑232, RS‑485, or RS‑422.
It supports baud rates from 1200 bps up to 115200 bps.
The bridge operates from a DC supply of 9 V to 25 V.
It works from 0 °C to 60 °C, with storage temperature from –40 °C to 70 °C.
