IGZB1 IGBT Chopper Power Supply Control Board User Manual

The IGZB1 IGBT chopper power supply control board manual provides overview, specifications, wiring diagrams, and operation instructions.

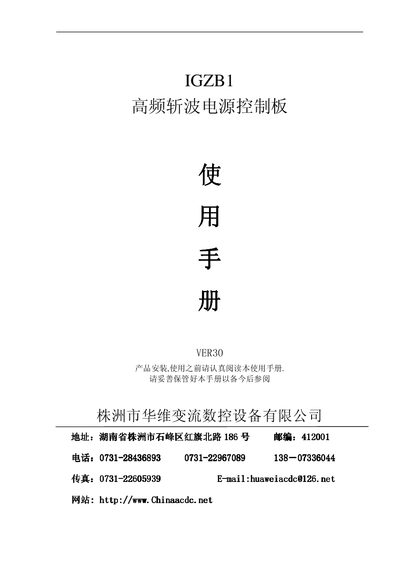

IGZB1 IGBT Chopper Power Supply Control Board User Manual - cover page
Brand
株洲市华维变流数控设备有限公司
Category
Power Management
Document type
User Manual
Language
Chinese
Pages
6
File format
PDF
File size
809 KB
Published
28 September, 2026
Updated
28 September, 2026
MD5 checksum
18C6E9FDEEDC326BBA770B8FBDF2510A

About this manual

This manual describes the IGZB1 IGBT chopper power supply control board, which can drive the full series of 600V/1200V/1700V IGBTs and offers over‑current, over‑voltage, over‑temperature, external fault, drive‑stage under‑saturation, short‑circuit and soft‑shutdown protection. It is used in high‑frequency chopper power supplies, DC motor speed‑control supplies, battery‑powered motor‑vehicle drives, and IGBT induction heating power supplies.

The document includes technical specifications, block and terminal diagrams, assembly instructions, wiring tables, adjustment of potentiometers, switch settings, application wiring examples, and a service commitment offering one‑year free repair and ongoing technical support. This manual is written in Chinese.

What's inside

  • Overview
  • Name and Model
  • Technical Specifications
  • Block Diagram
  • Terminal Diagram
  • Assembly Diagram and Description
  • Application Wiring Diagram
  • Service Commitment

Specifications

Power Supply (AC16V)15W
Operating ModesConstant current, constant voltage, constant speed selectable
Voltage Feedback (UF)0‑10 V DC
Current Feedback (IF)0‑5 V DC
Dimensions130 × 105 × 28 mm

Frequently asked questions

What protection features does the IGZB1 board provide?

It includes over‑current, over‑voltage, over‑temperature, external fault, drive‑stage under‑saturation, short‑circuit and soft‑shutdown protection.

How many IGBT devices can be driven simultaneously?

The board can drive 6‑8 IGBTs in parallel via the expansion interface.

What is the adjustable PWM frequency range?

The PWM pulse frequency can be set from 2 kHz to 200 kHz.

What are the physical dimensions of the control board?

The board measures 130 mm × 105 mm × 28 mm.
