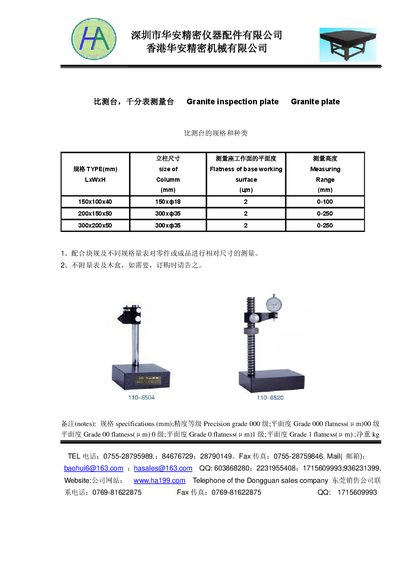

This leaflet provides specifications for Hua'an Precision Instruments' measurement tables, including dimensions, flatness grades, and contact information.
The measurement tables from Hua'an Precision Instruments are designed for relative dimensional inspection of parts or finished products using gauge blocks and various scales.
Available in three sizes (150 × 100 × 40 mm, 200 × 150 × 50 mm, 300 × 200 × 50 mm), they offer column diameters of Ø18 mm or Ø35 mm and measuring ranges up to 250 mm, with precision flatness grades from 000 to 1. Contact details are provided for ordering. This manual is written in Chinese.
| 150×100×40 mm size | Column Ø18 mm, Measuring range 0‑100 mm |
|---|---|
| 200×150×50 mm size | Column Ø35 mm, Measuring range 0‑250 mm |
| 300×200×50 mm size | Column Ø35 mm, Measuring range 0‑250 mm |
| Precision grade 000 | Flatness 0 μm |
| Precision grade 00 | Flatness 0 μm |
| Precision grade 0 | Flatness 1 μm |
| Precision grade 1 | Flatness unspecified |
