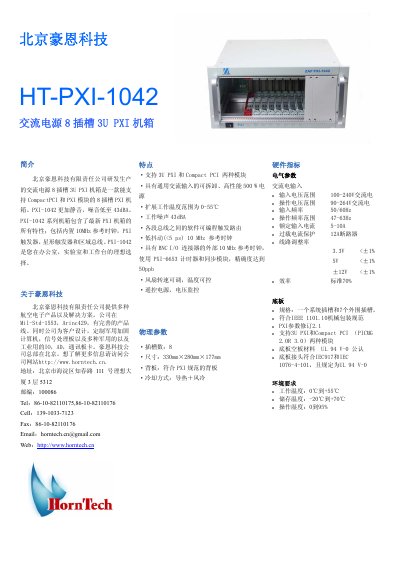

The Horntech HT-PXI-1042 is a 3U PXI chassis with 8 slots, 500 W AC power, 43 dBA noise and an integrated 10 MHz reference clock.
The HT-PXI-1042 chassis from Horntech supports both 3U PXI and CompactPCI modules. It provides eight slots (one system slot and seven peripheral slots) and a detachable high‑performance 500 W AC power supply, making it suitable for office, laboratory and work‑bench environments.
Key features include a low‑noise design (43 dBA), a built‑in 10 MHz reference clock with jitter under 5 ps, programmable trigger routing, adjustable fan speed, and remote power monitoring. The chassis complies with PXI and IEEE mechanical standards and operates from 0 °C to +55 °C. This manual is written in Chinese.
| Dimensions (W×H×D) | 330 mm × 280 mm × 177 mm |
|---|---|
| Input voltage range | 100‑240 V AC |
| Output power | 500 W |
| Noise level | 43 dBA |
| Operating temperature range | 0 °C to +55 °C |
| Reference clock | 10 MHz, jitter <5 ps |
| Input frequency | 50/60 Hz |
| Efficiency | 70 % |
The chassis operates with a low noise level of 43 dBA.
It accepts an AC input voltage ranging from 100 V to 240 V.
Yes, it includes a built‑in 10 MHz reference clock with jitter less than 5 ps.
