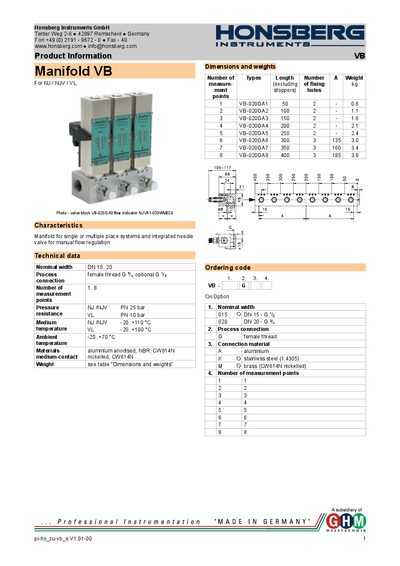

Product information for the Honsberg Instruments VB-020GA manifold, detailing flow control features, dimensions, and ordering codes.
The VB-020GA manifold from Honsberg Instruments is designed for single or multiple place systems and includes an integrated needle valve for manual flow regulation. It supports nominal widths from DN 15 to DN 20 and offers process connections with female threads G 3/4 (optional G 1/2).\n\nTechnical data include up to eight measurement points, pressure resistance of 25 bar (NJ/NJV) or 10 bar (VL), temperature ranges from –20 °C to +110 °C (NJ/NJV) and –20 °C to +100 °C (VL), and various material options. Dimensions, weights, and ordering codes for each configuration are listed in the accompanying table. This manual is written in German.
| Nominal width | DN 15..20 |
|---|---|
| Process connection | female thread G 3/4, optional G 1/2 |
| Number of measurement points | 1..8 |
| Pressure resistance (NJ/NJV) | PN 25 bar |
| Pressure resistance (VL) | PN 10 bar |
| Medium temperature (NJ/NJV) | -20..+110 °C |
| Medium temperature (VL) | -20..+100 °C |
| Ambient temperature | -20..+70 °C |
| Materials (medium‑contact) | aluminium anodised, NBR, CW614N nickelled, CW614N |
| Weight (VB‑020GA1) | 0.6 kg |
The nominal width ranges from DN 15 to DN 20.
It can support from 1 up to 8 measurement points.
The NJ/NJV version is rated for a pressure resistance of 25 bar.
The VL version operates between –20 °C and +100 °C for the medium temperature, and –20 °C to +70 °C ambient.
