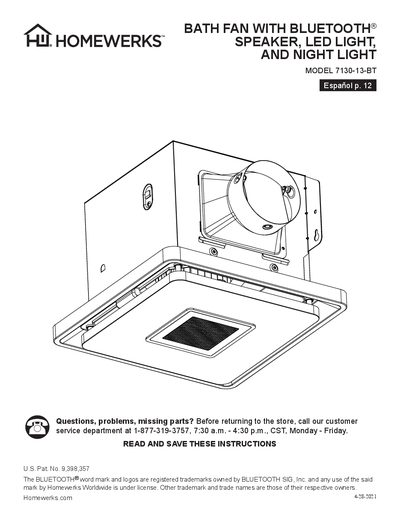

The Homewerks 7130-13-BT Bath Fan User Manual provides specifications, safety guidelines, installation steps, and operation instructions for the…
This manual covers all aspects of the Homewerks 7130-13-BT bath fan, including product specifications, UL and FCC compliance, and the components included in the package. Detailed safety information and preparation steps are provided to ensure a proper and code‑compliant installation.
Installation instructions guide you through mounting the fan housing, wiring the dedicated LED wall switch, and connecting the Bluetooth speaker and LED light. The guide also explains how to operate the fan, LED light, night light, and Bluetooth speaker, as well as care, cleaning, troubleshooting, and warranty information.
| Airflow | 110 CFM |
|---|---|
| LED light power consumption | 15W 120V, 60Hz |
| LED light brightness | 800 lumens |
| Duct diameter | 4 in. |
| LED light color (CCT) | 4000K Cool White |
| Sound output | 1.5 sones |
| Night light color | Blue and 2200K Warm White |
| Motor power consumption | 30W |
| Weight | 9.5 lbs. |
| Exhaust fan speed | 1050 RPM |
Set your device to discoverable, select the Homewerks™ speaker from the Bluetooth list, and enter the PIN 0000 if prompted.
Always disconnect the power supply before servicing, follow local building and electrical codes, and ensure the fan is grounded.
Press the LED Light button to turn the light on or off, and press the Dimmer button multiple times to adjust brightness.
