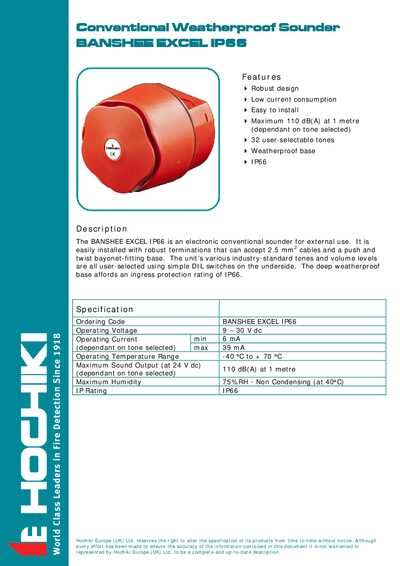

The Hochiki BANSHEE EXCEL IP66 is a weatherproof sounder with 32 selectable tones, up to 110 dB(A) output and IP66 protection.
The BANSHEE EXCEL IP66 is an electronic conventional sounder designed for external use. It features a robust design, low current consumption, easy installation with a push‑and‑twist bayonet‑fitting base, and a weatherproof enclosure rated IP66. The unit provides 32 user‑selectable tones that are set via simple DIL switches.
Key specifications include an operating voltage of 9‑30 V dc, a current draw of 6‑39 mA depending on tone, a temperature range of –40 °C to +70 °C, and a maximum sound output of 110 dB(A) at 1 m. The device can operate in up to 75 %RH non‑condensing humidity and accepts 2.5 mm² cable terminations.
| Operating Voltage | 9 – 30 V dc |
|---|---|
| Operating Current | min 6 mA, max 39 mA (tone dependent) |
| Operating Temperature Range | -40 °C to +70 °C |
| Maximum Sound Output | 110 dB(A) at 1 metre (tone dependent) |
| Maximum Humidity | 75 %RH non‑condensing (at 40 °C) |
| IP Rating | IP66 |
| User‑selectable Tones | 32 |
The sounder has an IP66 rating, providing full protection against dust and water jets.
It offers 32 user‑selectable tones.
The device operates from 9 V to 30 V dc.
The maximum sound output is 110 dB(A) at 1 metre, depending on the selected tone.
