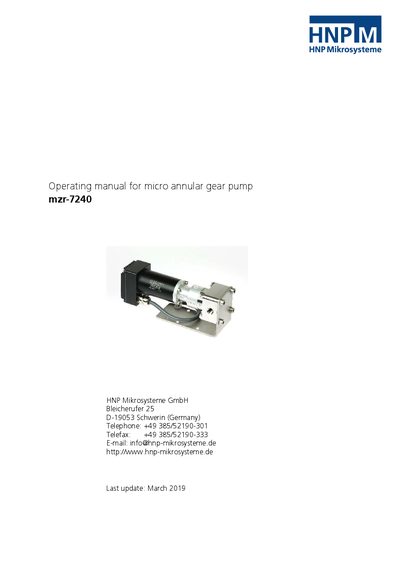

The HNP Mikrosysteme mzr-7240 operating manual provides integration, operation, safety, and maintenance instructions for the micro annular gear pump.
This operating manual covers the basic instructions required for integrating, operating, and maintaining the HNP Mikrosysteme mzr-7240 micro annular gear pump. It includes general information, safety guidelines, technical data, and detailed procedures for assembly, startup, shutdown, and troubleshooting.
The document also describes optional motor versions, modular system components, software options, and accessory selection, as well as legal and compliance information such as EC directives and declarations of conformity.
| Displacement volume | 48 µl |
|---|---|
| Dimensions (L×W×H) | 150 mm × 100 mm × 42 mm |
| Weight | 550 g |
| Flow rate (max) | 288 l/h |
| Smallest dosage volume | 5 µl |
| Differential pressure range | 0 – 5 bar |
| Viscosity range | 0.3 – 10 000 mPas |
| Operating temperature | -5 °C to 60 °C |
Operators must protect the motor surface, ensure adequate ventilation, avoid explosion‑risk areas, use filters with 10 µm pores, keep protective guards in place, and follow all listed safety symbols and instructions.
The pump can deliver up to 288 l/h (approximately 17.28 l/h at higher pressure).
