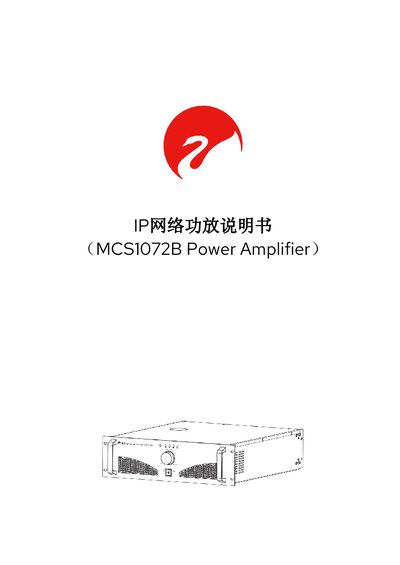

The HiVi MCS1072B IP network power amplifier user manual provides setup, panel functions, configuration, troubleshooting, and specifications.
This manual describes the HiVi MCS1072B IP network power amplifier, a 70V/100V constant‑voltage and 4‑16Ω constant‑impedance audio amplifier with network control features. It outlines the device’s functions, panel layout, and connection options.
The guide covers terminal configuration using the IPCAS software, parameter settings such as audio bitrate and power ratings, common fault diagnostics, and contact information for technical support. This manual is written in Chinese.
| Rated Power | 1500W |
|---|---|
| Power Consumption | 2500W |
| Input Sensitivity | 1000mV (unbalanced) |
| Frequency Response | 70Hz–18kHz (±3dB) |
| Signal‑to‑Noise Ratio | Line ≥105dB, Network ≥78dB (A‑weight) |
| Protection Measures | Overload, over‑temperature, short‑circuit protection |
| Dimensions | 547.8 × 484 × 132 mm (L×W×H) |
| Weight | 24.2 kg |
The power indicator may be off because the power cable is not properly connected or the fuse has blown.
Protection mode can be triggered by overload or short‑circuit on the output, or by an excessively high input signal.
