HIOS BLG-ZERO1 Series Brushless Electric Screwdriver Operation Manual

This manual covers the operation, settings for screw tightening judgment and counting, and error code explanations for the HIOS BLG-ZERO1 series brushless…

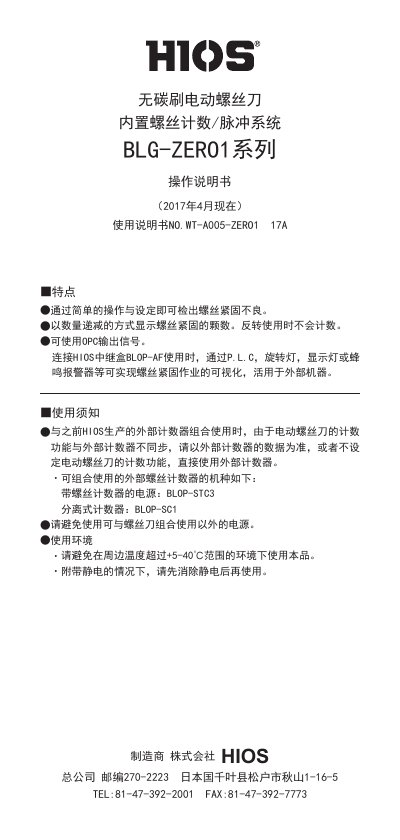

HIOS BLG-ZERO1 Series Brushless Electric Screwdriver Operation Manual - cover page
Brand
HIOS
Document type
User Manual
Language
Japanese
Pages
4
File format
PDF
File size
820 KB
Published
25 October, 2026
Updated
25 October, 2026
MD5 checksum
FC749AFC0CCA34DFE8FDA908B579B057
PDF
HIOS BLG-ZERO1 Series Brushless Electric Screwdriver Operation Manual PDF

About this manual

The HIOS BLG-ZERO1 series is a brushless electric screwdriver designed to detect poor screw tightening through simple operations. It features a built-in screw counting/pulse system that displays the number of tightened screws in descending order and does not count when used in reverse. The device can be connected with the HIOS relay box BLOP-AF for visualization via PLC, rotating lights, display lamps, or alarm buzzers. This manual is written in Japanese.

What's inside

  • Features
  • Precautions
  • Setting Button Functions
  • Display Unit
  • PASS/FAIL Indicators
  • Screw Tightening Judgment Setting
  • Counting Function Setting
  • Error Code Display

Specifications

Operating Temperature Range+5-40℃
Compatible External Counter (Power Type)BLOP-STC3
Compatible External Counter (Separate Type)BLOP-SC1
Max Screw Count Setting99 screws

Frequently asked questions

What happens if the screw is too short or other parts are jammed?

The display unit shows Error Code 1.

How do you clear an error display?

Press the switch lever to release the error display.
