HighTek HK-8101F Serial Server User Manual

This manual provides installation, configuration, and troubleshooting instructions for the HighTek HK-8101F 1-port serial server.

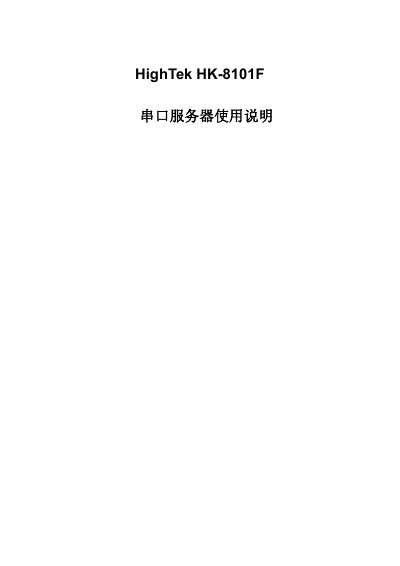

HighTek HK-8101F Serial Server User Manual - cover page
Brand
Hightek
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
18
File format
PDF
File size
1.7 MB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BC74D57EE1E8B277CA573E07143BF45B
PDF
HighTek HK-8101F Serial Server User Manual PDF

About this manual

The HighTek HK-8101F is a 1-port serial communication server designed to convert RS232/485/422 interfaces to Ethernet TCP/IP. It features a 32-bit embedded CPU, supports various operating modes including virtual COM port and point-to-point connections, and includes a dedicated configuration tool for easy setup. This manual is written in Chinese.

What's inside

  • Product Overview
  • Installation Instructions
  • LED Indicator Description
  • Pin Definitions
  • Technical Specifications
  • Configuration Tool Operation
  • Troubleshooting

Specifications

Processor32bit 25MHz
Memory2K bytes
Baud Rate Range110-921600bps
Network InterfaceRJ45 10/100M Adaptive
Operating Temperature-40℃ to 85℃

Frequently asked questions

What is the default IP address of the device?

The factory default IP address is 192.168.0.233.

How do I restore the device to factory settings?

Press and hold the Reset key for approximately 5 seconds.

What is the power supply requirement?

The device requires a DC power input of 4.75V to 5.25V.

Download PDF (1.7 MB)
