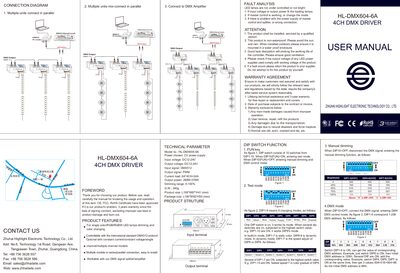

User manual for the Highlight HL-DMX604-6A 4‑channel DMX driver, covering features, specifications, installation, DIP switch settings and troubleshooting.
The Highlight HL-DMX604-6A is a 4‑channel DMX driver for single‑color, RGB and RGBW LED lamps. It operates with the DMX512 protocol and supports constant‑current or constant‑voltage LED modules in series or parallel.
The manual provides technical parameters, wiring diagrams, DIP‑switch functions for address and mode selection, fault analysis, and warranty information. It also includes safety notes for installation and operation.
| Model No. | HL-DMX604-6A |
|---|---|
| Power Supply Type | CV (constant voltage) |
| Input Voltage | DC 12‑24 V |
| Output Voltage | DC 12‑24 V |
| Input Signal | DMX512 |
| Output Signal | PWM |
| Current Load | 6 A × 4 CH = 24 A |
| Output Power | 288 W‑576 W |
| Dimming Range | 0‑100 % |
| Gross Weight | 340 g |
| Product Size (L×W×H) | 156 mm × 67 mm × 41 mm |
| Package Size (L×W×H) | 180 mm × 82 mm × 50 mm |
The product has a 3‑year warranty from the date of signing the contract, excluding improper use or damage.
The driver receives a DMX512 signal as input and outputs a PWM signal to control the LEDs.
Each channel can handle up to 6 A, for a total of 24 A across the four channels.
