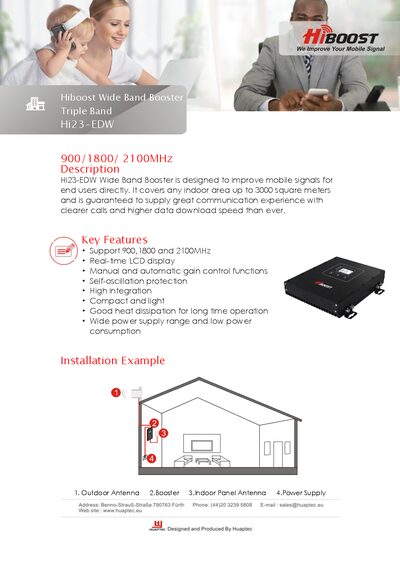

The Hiboost Hi23-EDW Wide Band Booster Triple Band enhances indoor mobile signals across 900/1800/2100 MHz up to 3000 sq ft.
The Hi23-EDW Wide Band Booster is designed to improve mobile signal strength for end users in indoor environments. It supports the 900 MHz, 1800 MHz and 2100 MHz bands, offers real‑time LCD display, manual and automatic gain control, and self‑oscillation protection.
The device provides up to 70 dB uplink gain and 75 dB downlink gain, with a maximum output power of 17 dBm (900 MHz) and 23 dBm (1800/2100 MHz). It operates from AC 100‑240 V and supplies 12 V DC at 7 A, consuming ≤32 W. The unit is compact (8.7×11×2.2 in), weighs ≤11 lb, and is rated for -10 °C to +55 °C operation (IP40).
| Supported Frequency Bands | 900 MHz, 1800 MHz, 2100 MHz |
|---|---|
| Maximum Gain | 70 dB (uplink), 75 dB (downlink) |
| Maximum Output Power | 17 dBm (900 MHz), 23 dBm (1800/2100 MHz) |
| Power Supply Input | AC 100‑240 V, 50/60 Hz |
| Power Consumption | ≤32 W |
| Operating Temperature | -10 °C to +55 °C |
| Weight | ≤11 lb (5 kg) |
It supports the 900 MHz, 1800 MHz and 2100 MHz mobile bands.
The booster provides up to 70 dB gain on the uplink and 75 dB on the downlink.
The unit consumes 32 W or less during operation.
It can operate from –10 °C up to +55 °C.
