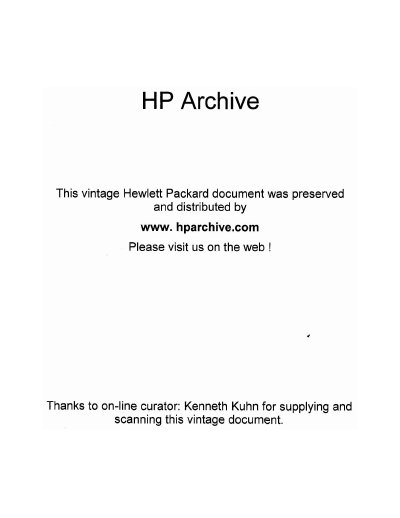

This manual provides operating instructions, specifications, and maintenance information for the Hewlett-Packard Model 200A Audio Oscillator.
The Hewlett-Packard Model 200A Audio Oscillator is a general-purpose instrument that uses a resistance-tuned circuit to generate alternating current voltages from 35 to 35,000 cycles/sec. It is designed for amplifier testing, audio response tests, resonance tests, and as a voltage source for bridge measurements. The unit includes an oscillator section, an amplifier section, and a power supply, utilizing vacuum tubes for signal generation and amplification.
| Frequency Range | 35 to 35,000 cycles/sec |
|---|---|
| Calibration Accuracy | 2% |
| Frequency Response | +1 db 20 - 15,000 cycles/sec |
| Power Output | 1 watt into rated load |
| Load Impedance | 500 ohms (resistive) |
| Power Supply Voltage | 115 volts |
| Power Supply Frequency | 50 to 60 cycles/sec |
| Weight (Cabinet Model) | 26-1/2 pounds |
The oscillator generates alternating current voltages from 35 to 35,000 cycles/sec.
A warm-up period of about 30 minutes is necessary for maximum accuracy.
