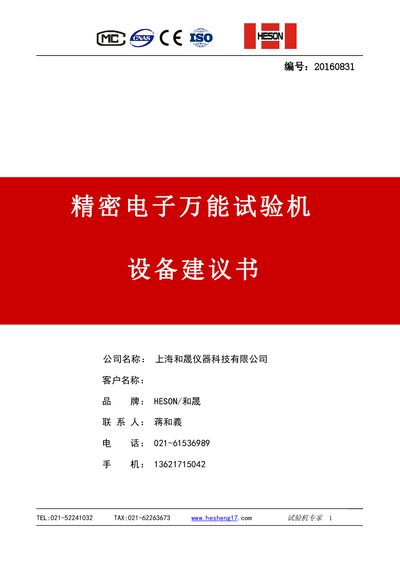

This document is a proposal for the HESON HS-3001C-S precision electronic universal testing machine, detailing its features, technical specifications, and…
The HESON HS-3001C-S is a precision electronic universal testing machine designed for tensile, tearing, peeling, and compression tests on metals and non-metallic materials. It features a computer-controlled system with a Japanese Panasonic servo motor and a Taiwanese ABBA high-carbon ball screw for high accuracy and stability. The machine includes multiple safety protections and supports various control modes such as constant speed, constant load, and constant stroke. This manual is written in Chinese.
| Maximum Load | 20KN |
|---|---|
| Effective Test Space | 370*800MM |
| Force Resolution | ±1/500000 |
| Force Measurement Accuracy | ±0.5% |
| Displacement Resolution | 0.05mm |
| Displacement Measurement Accuracy | ±0.5% |
| Deformation Resolution | ±1/300000F.S |
| Power Supply | AC220V50HZ |
| Dimensions | 800*400*1800mm |
| Weight | 300KG |
The machine meets the GB/T16491 'Electronic Universal Testing Machine' standard.
The warranty period is one year from the final acceptance.
The machine can perform tensile, compression, bending, and shear tests.
