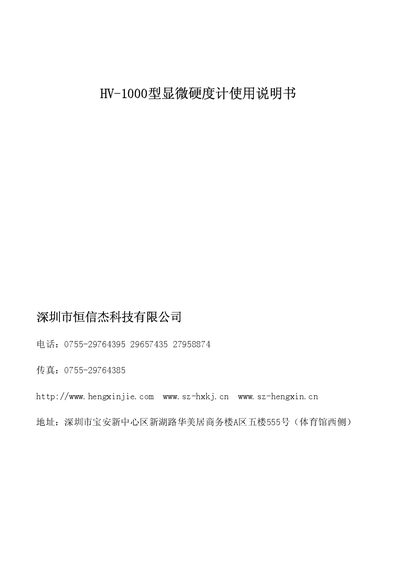

The HV-1000 microscope hardness tester manual provides setup, operation, and safety instructions for accurate hardness measurements.
This manual describes the HV-1000 microscope hardness tester, a compact device for measuring micro‑hardness of materials such as metal, ceramic, glass and gemstones. It outlines the instrument’s optical measurement system, load settings, and user interface.
The guide covers unpacking, installation, panel functions, measurement procedures, maintenance, and safety precautions, ensuring reliable operation in a laboratory environment. This manual is written in Chinese.
| Load forces | 0.01–1 Kgf (0.098–9.80 N) |
|---|---|
| Minimum load unit | 0.5 nm |
| Maximum height of specimen | 85 mm |
| Center to outer wall height | 95 mm |
| Weight | 25 kg |
| Power supply | AC 220 V / 50 Hz |
| Operating temperature | 23 °C ± 5 °C |
| Relative humidity | ≤ 65 % |
| Load hold time | 0–60 s |
The instrument provides eight selectable loads ranging from 0.01 Kgf (0.098 N) up to 1 Kgf (9.80 N).
It operates from an AC 220 V, 50 Hz mains supply.
