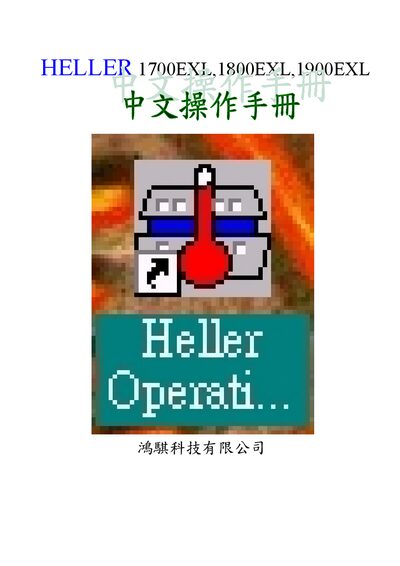

The HELLER 1700EXL/1800EXL/1900EXL soldering system user manual provides setup, operation, programming, and troubleshooting instructions.
The HELLER 1700EXL, 1800EXL and 1900EXL series are industrial soldering ovens with configurable temperature, track speed, nitrogen control and automatic lubrication. The system can be operated via a Windows‑based controller (ANAF AZE or ANALOGIC) and supports multiple units and measurement settings.
This manual covers system environment configuration, hardware settings such as track width and speed, program editing, operation modes, heating sequence, alarm handling, and detailed fault diagnosis. It also includes wiring diagrams, channel mappings, and safety precautions for power and communication interfaces. This manual is written in Chinese.
| Maximum output power (new program) | 80% |
|---|---|
| Power supply voltage | AC 230V |
| Temperature unit | °C or °F |
| Length unit | CM or IN |
| Speed unit | per minute or per second |
| Maximum track speed | 188 cm/min |
| Minimum track speed | 0 cm/min |
| Heating zones (1800EXL) | 9 |
| Cooling zones (1800EXL) | 2 |
| Heater channel mapping | Channels 1‑12, 15‑20 |
| Thermocouple channels | 16 |
In the system settings screen, choose either °C or °F as the temperature unit.
