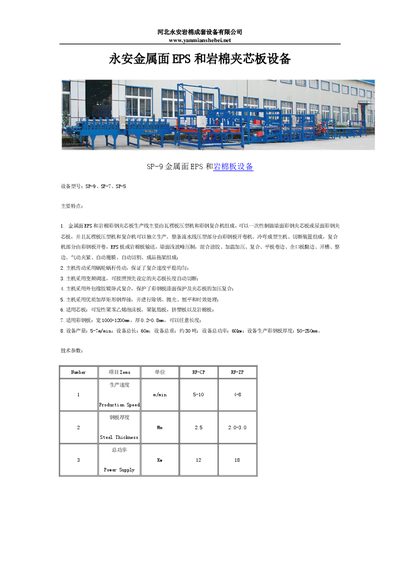

The leaflet describes Hebei Yong'an's SP-9, SP-7, and SP-5 metal‑faced EPS and rock‑wool sandwich panel production lines, including main features, technical…
Hebei Yong'an offers a series of metal‑faced EPS and rock‑wool sandwich panel production lines (models SP-9, SP-7, SP-5). The line combines a corrugated board forming machine and a color‑steel composite machine, allowing one‑step production of wall or roof sandwich panels. Key features include worm‑gear drive, variable‑frequency speed control, horizontal rubber‑roller composite, and high‑strength welded steel frames.
Technical data show a production speed of 5‑10 m/min, steel plate width of 1000‑1200 mm, thickness of 0.2‑0.8 mm, total power of 12 kW (model‑specific up to 18 kW), overall length of 60 m, weight around 30 t, and a capacity of 5‑7 m/min. Contact information and model options are listed at the end of the leaflet. This manual is written in Chinese.
| Production Speed | 5-10 m/min |
|---|---|
| Steel Thickness | 2.5 mm |
| Power Supply | 12 kW |
| Equipment Length | 60 m |
| Equipment Weight | ≈30 t |
| Production Capacity | 5-7 m/min |
| Steel Plate Width | 1000-1200 mm |
| Steel Plate Thickness | 0.2-0.8 mm |
The equipment can run at 5‑10 m/min (model‑specific ranges are 4‑8 m/min for some variants).
The total power consumption is 12 kW (up to 18 kW for certain models).
