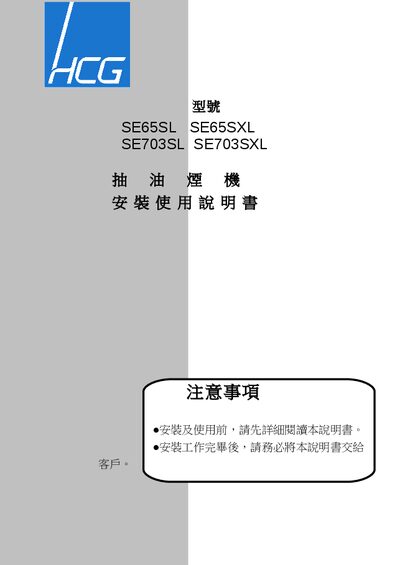

HCG SE65SL/SE65SXL/SE703SL/SE703SXL Range Hood Installation and User Manual

The HCG manual provides installation steps, operation instructions, cleaning, troubleshooting, and specifications for SE65SL, SE65SXL, SE703SL, and SE703SXL…

Brand: HCG
Category: Air Cleaners Purifiers
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 312 KB
Published: 12 March, 2012
Updated: 28 September, 2026
MD5 checksum: 16C8214B079631E43386490C69EF0CA1
PDF: HCG SE65SL/SE65SXL/SE703SL/SE703SXL Range Hood Installation and User Manual PDF

About this manual

This manual explains how to safely install and use the HCG SE65SL/SE65SXL/SE703SL/SE703SXL range hoods. It includes precautions, wiring diagrams, part identification, and detailed installation procedures.

The guide also covers operating controls, cleaning and maintenance tips, spare parts, fault diagnosis, and performance specifications such as voltage, motor power, airflow, and weight. This manual is written in Chinese.

What's inside

Precautions
Diagram and Dimensions
Parts List
Installation Instructions
Operation Method
Cleaning and Maintenance
Spare Parts
Troubleshooting
Performance Specifications

Specifications

Rated Voltage	AC 110V 60Hz
Motor Power	190 W (SE65SL/SE65SXL) / 140 W (SE703SL/SE703SXL)
Airflow	16.1 m³/min (SE65SL/SE65SXL) / 11.7 m³/min (SE703SL/SE703SXL)
Weight	14 kg (SE65SL/SE65SXL) / 15 kg (SE703SL/SE703SXL)
Lighting	40 W bulb
Fan Diameter	160 mm

Frequently asked questions

What voltage should be used for the range hood?

Use AC 110 V / 60 Hz power; using any other voltage may cause fire or electric shock.

What is the recommended installation height for the hood?

Mount the hood so that the distance from the stove surface to the bottom of the unit is about 65–75 cm.
