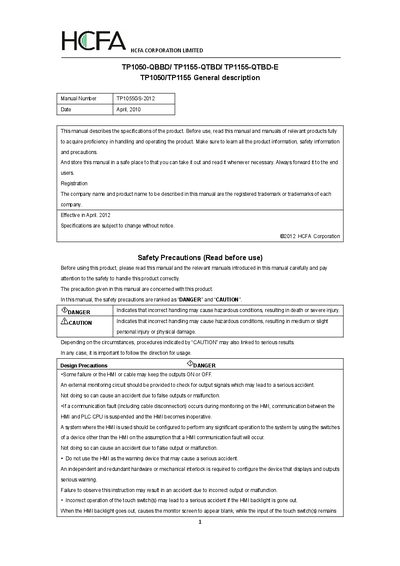

This manual provides specifications, safety, installation, wiring and operation guidelines for the HCFA TP1050 and TP1155 HMI units.
The HCFA TP1050/TP1155 HMI General Description Manual outlines the product’s specifications, safety precautions, mounting, wiring, and operational procedures. It is intended for users and installers who need to configure the HMI in industrial control panels.
Key sections cover design and mounting safety, wiring practices, EMC compliance, power‑supply requirements, communication interfaces, and detailed performance specifications such as display size, resolution, temperature limits, and power consumption.
| Operating ambient temperature (display) | 0 to 50°C |
|---|---|
| Storage ambient temperature | -20 to 60°C |
| Screen size | 5.7" |
| Resolution | 320 × 240 dots |
| Input power supply voltage | 24 VDC (+10% – 15%) |
| Power consumption (backlight off) | 9.36 W |
| Serial interface | RS‑422/485 |
| USB speed | 12 MBps (high‑speed) |
| Weight | 0.7 kg |
All phases of the external power supply must be shut off before mounting or removing the HMI to prevent electric shock or damage.
The display section can operate from 0 °C up to 50 °C.
The HMI includes RS‑422/485, RS‑232, USB (up to 12 MBps) and Ethernet (100BASE‑TX/10BASE‑T) interfaces.
