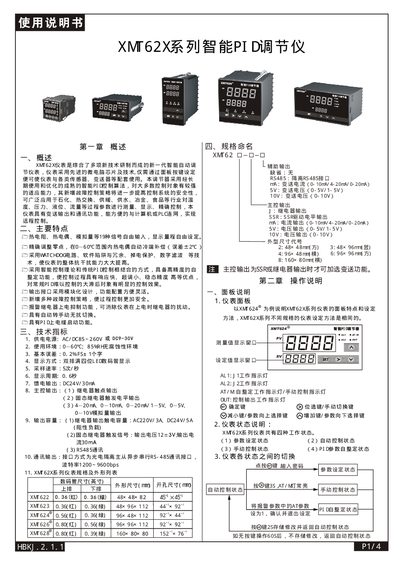

Chinese user manual for the HBKJ XMT62X intelligent PID controller, covering installation, operation, parameter setting and communication.
The XMT62X series intelligent PID controller is a next‑generation automatic regulator that integrates advanced micro‑computer technology, supporting a wide range of sensors and transmitters. It offers PID control, fault‑control strategies, output transmission and RS‑485 communication for use in industries such as petrochemical, heating, water supply and food processing.
The manual provides a complete overview of the device, including power requirements, environmental limits, display format, sampling rate, output options, wiring diagrams, parameter groups (function, work, control), self‑tuning procedures and Modbus‑RTU communication settings. This manual is written in Chinese.
| Supply voltage | AC/DC 85‑260 V |
|---|---|
| Operating temperature range | 0‑60 °C |
| Display type | Dual‑row 4‑digit LED numeric display |
| Sampling rate | 5 samples per second |
Press the SET key for 3 seconds while the instrument is in automatic control; the display will show the manual mode and you can adjust the output percentage.
