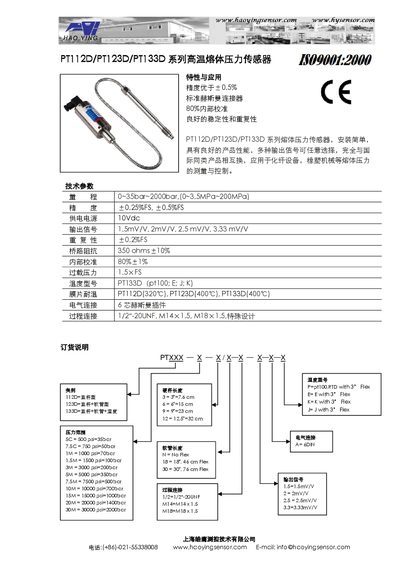

The manual provides specifications, ordering information, and connection details for Haoying PT112D/PT123D/PT133D high‑temperature melt pressure sensors.
This document describes Haoying’s PT112D, PT123D and PT133D series high‑temperature melt pressure sensors, which are used for measuring and controlling melt pressure in synthetic fiber and rubber‑plastic equipment. The sensors feature simple installation, multiple output options, and compatibility with international products.
Key specifications include a pressure range up to 2000 bar, accuracy better than ±0.5 %FS, 10 V DC supply, and selectable output signals from 1.5 mV/V to 3.33 mV/V. The series offers different mechanical configurations (straight rod, rod + flex hose) and temperature‑resistant membranes up to 400 °C. This manual is written in Chinese.
| Pressure range | 0~35 bar to 2000 bar (0~3.5 MPa to 200 MPa) |
|---|---|
| Accuracy | ±0.25 %FS, ±0.5 %FS |
| Output signal options | 1.5 mV/V, 2 mV/V, 2.5 mV/V, 3.33 mV/V |
| Bridge impedance | 350 Ω ±10 % |
| Membrane temperature limit | PT112D 320 °C, PT123D 400 °C, PT133D 400 °C |
| Process connection types | 1/2"‑20UNF, M14×1.5, M18×1.5 |
Four output sensitivities are offered: 1.5 mV/V, 2 mV/V, 2.5 mV/V, and 3.33 mV/V.
They can measure from 0 bar up to 2000 bar (0 MPa to 200 MPa).
PT112D is rated to 320 °C, while PT123D and PT133D are rated to 400 °C.
