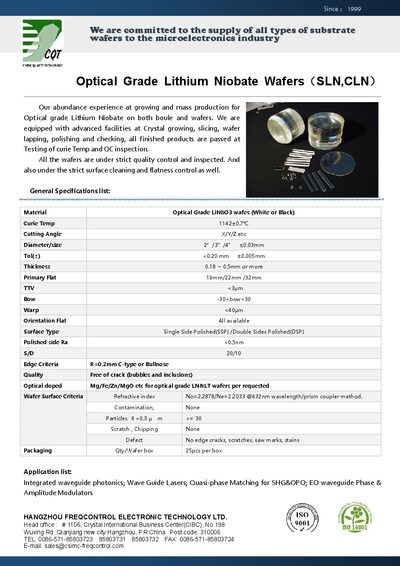

Technical specifications and application information for Hangzhou Freqcontrol optical grade lithium niobate wafers (SLN, CLN).
Hangzhou Freqcontrol provides optical grade lithium niobate wafers (SLN, CLN) with precise control of dimensions, surface quality, and material properties. The wafers are available in 2", 3" and 4" diameters, with thicknesses from 0.18 mm to 0.5 mm, and meet strict flatness and edge criteria.
These wafers are used in integrated waveguide photonics, waveguide lasers, electro‑optic modulators, quasi‑phase‑matched frequency conversion devices, and surface acoustic wave components. Detailed material constants such as refractive index, dielectric constant, and piezoelectric coefficients are provided for design engineers.
| Material | Optical Grade LiNbO3 (White or Black) |
|---|---|
| Curie Temperature | 1142 ± 0.7 °C (CLN) |
| Diameter / Size | 2", 3", 4" ±0.03 mm |
| Thickness | 0.18 ~ 0.5 mm or more |
| Primary Flat | 16 mm / 22 mm / 32 mm |
| Surface Type | Single Side Polished (SSP) / Double Side Polished (DSP) |
| Polished Side Roughness (Ra) | < 0.5 nm |
| Refractive Index (632 nm) | No = 2.2878, Ne = 2.2033 |
| Packaging | 25 wafers per box |
Both single‑side polished (SSP) and double‑side polished (DSP) options are available.
