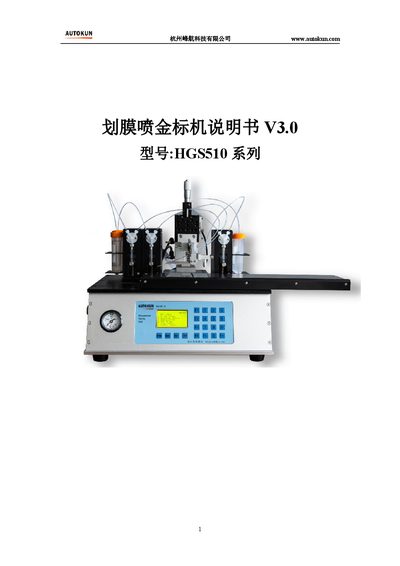

The Hangzhou Autokun HGS510 series manual provides detailed operation, setup, and parameter instructions for the membrane scribing and gold spraying marking…
This manual describes the components, power and air requirements, and initialization procedure for the HGS510 series membrane scribing and gold spraying marking machine. It explains how to set up the device, connect power (90‑230VAC/50 Hz) and air (4‑8 kgf, oil‑free), and perform initial calibration of the X‑Y slide and injection pump.
The document then covers the three operating modes—membrane scribing, gold spraying, and spot spraying—detailing cleaning, priming, parameter settings, menu navigation, and installation of the scribing head. System parameters such as pump speed, spray amount, and slide speed are adjustable via the on‑screen menus, and safety/maintenance steps are provided. This manual is written in Chinese.
