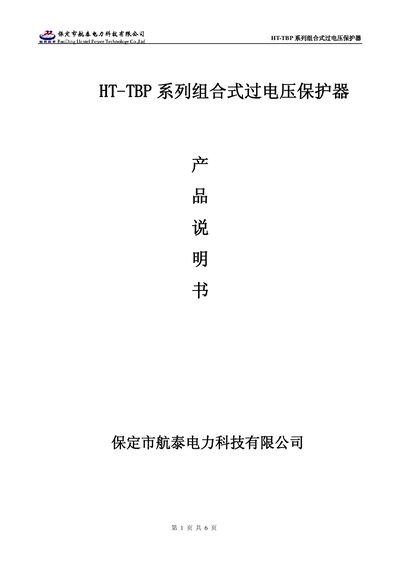

The Hangtai HT‑TBP series combination overvoltage protector manual provides product structure, model codes, technical parameters, installation dimensions…
The HT‑TBP series combination overvoltage protectors are designed to protect power stations, motors, capacitors, motor neutral points and cables from over‑voltage events. They feature interchangeable three‑phase connections and optional gap or counter types.
This manual describes the product structure, model designation, detailed technical specifications, installation drawings, operating instructions, test procedures and safety considerations for the HT‑TBP protectors. This manual is written in Chinese.
| System rated voltage levels | 6 kV, 10 kV, 35 kV |
|---|---|
| Nominal discharge current | 5 kA |
They can be used in environments from –40 °C to +60 °C.
A preventive test should be performed every one to two years.
Indoor units can be mounted horizontally inside the chassis of various switchgear or on support beams.
