The HB‑NVR7908 supports up to 4 network cameras, ONVIF, 1 SATA drive, HDMI/VGA 1080p60 output, NTP sync and multiple recording modes.
The HB‑NVR7908 network video recorder from Hanbang High‑Tech is designed for high‑definition surveillance in locations such as banks, supermarkets, schools, airports and factories. It provides reliable video storage and playback for up to four IP cameras.

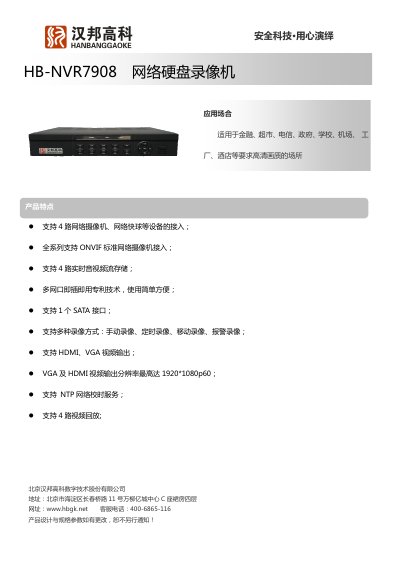

Key features include ONVIF‑compatible camera access, four real‑time audio/video streams, a single SATA interface for up to 4 TB HDD, HDMI and VGA outputs up to 1920×1080 p60, NTP network time synchronization, and various recording modes (manual, scheduled, motion‑triggered, alarm). The unit operates from a 12 VDC power supply and works in temperatures from –10 °C to 50 °C. This manual is written in Chinese.
| Supported network cameras | 4 |
|---|---|
| ONVIF compatibility | Supported |
| Real‑time audio/video streams | 4 |
| SATA interface | 1 (up to 4 TB HDD) |
| Recording modes | Manual, scheduled, motion, alarm |
| Video output interfaces | HDMI, VGA |
| Maximum video output resolution | 1920×1080 p60 |
| NTP network time service | Supported |
| Video playback channels | 4 |
| Maximum hard‑drive capacity | 4 TB |
| Power input | 12 VDC |
| Operating temperature | -10 °C to 50 °C |
It can connect up to four network cameras or network ball devices.
The recorder outputs video via HDMI or VGA at a maximum resolution of 1920×1080 p60.
Yes, it fully supports ONVIF‑standard network cameras.
It can accommodate a hard drive up to 4 TB.
