Hamamatsu Photonics CC228 Series High Voltage Power Module Datasheet

Datasheet for Hamamatsu Photonics CC228 series high voltage power modules featuring up to 1mA output current and wide temperature range.

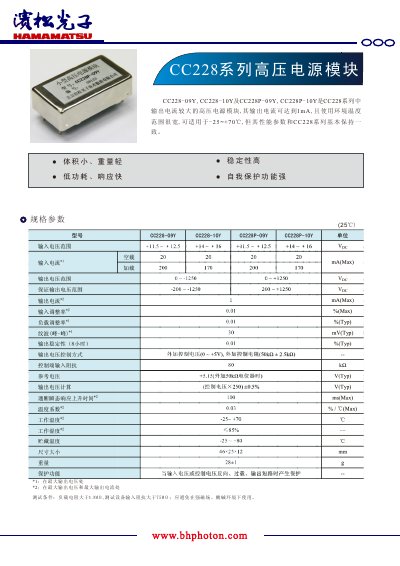

Hamamatsu Photonics CC228 Series High Voltage Power Module Datasheet - cover page
Brand
Hamamatsu Photonics
Document type
Product Leaflet
Language
Chinese
Pages
2
File format
PDF
File size
3 MB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BF823E0BFB53C1E965E0544D6EA6D055
PDF
Hamamatsu Photonics CC228 Series High Voltage Power Module Datasheet PDF

About this manual

The CC228-09Y, CC228-10Y, CC228P-09Y, and CC228P-10Y are part of the CC228 series of high voltage power modules. These units feature a maximum output current of 1mA. This manual is written in Chinese.

What's inside

  • Product Features
  • Specifications
  • Operating Conditions
  • Output Voltage Control
  • Dimensions

Frequently asked questions

What is the maximum output current of the CC228 series high voltage power modules?

The output current can reach 1mA.

What is the operating temperature range for these modules?

The modules are suitable for an ambient temperature range of -25 to +70°C.

What are the test conditions for the maximum output voltage and current?

Testing requires a load resistance greater than 1.3 MΩ and a test device input impedance greater than 75MΩ.

Download PDF (3 MB)
