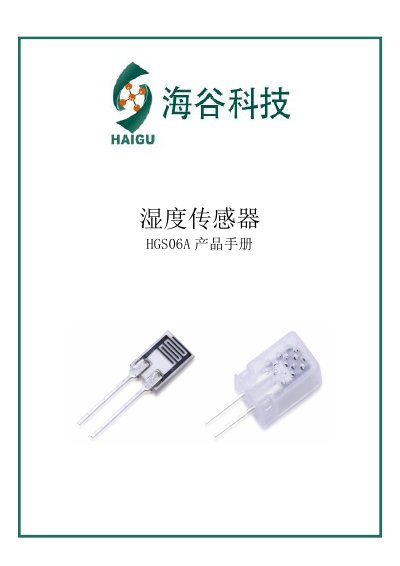

HAIGU HGS06A humidity sensor manual with specs, application fields, reliability tests and packaging details.
The HAIGU HGS06A is a resistive polymer humidity sensor offering high moisture tolerance, fast response, low hysteresis and stable performance. It is compatible with mainstream humidity sensors and is suitable for home appliances, industrial agriculture, and gift‑type devices.
The manual provides dimensions, electrical performance, standard test conditions, reliability test results, packaging methods, and special usage warnings, along with impedance tables and characteristic curves for various temperature and humidity points. This manual is written in Chinese.
| Working voltage | ≤5.5 Vpp AC |
|---|---|
| Working frequency | 0.5~2 kHz |
| Operating temperature range | 0~50 °C |
| Operating humidity range | 20~95 %RH |
| Stability | ≤2 %RH/year |
| Temperature coefficient | ≤0.5 %RH/°C |
| Measurement accuracy | ≤±3 %RH |
| Response time | ≤20 seconds |
| Water resistance (10 min immersion) | ≤2 %RH change after drying |
| Water resistance (30 min immersion) | ≤5 %RH change after drying |
| Recommended operating temperature | -10 °C to 60 °C |
| Recommended operating humidity | 0~100 %RH |
The sensor should be driven with a voltage of 5.5 Vpp or less (AC).
Its response time is 20 seconds or less.
No, it is prohibited to use the sensor near flammable or explosive gases.
